Steel Tile 750 Glazed Steel Profile Roll Forming Machine PLC Control For Construction

hebei feixiang roll forming machinery co,ltd;
Contact Now

Steel Tile 750 Glazed Steel Profile Roll Forming Machine PLC Control For Construction

  • 1
  • 2

Brand Name : Feixiang

Model Number : FX750

Certification : CE BV ISO

Place of Origin : China

MOQ : 1set

Price : Please check with the supplier

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 30 sets per week

Delivery Time : 15 days

Packaging Details : Nude packing,but we can also packing according the customer requirements

Machine name : Steel tile 750 glazed profile sheet roll making machine for Indonesia

size : 7200*1350*1250mm

Weight : 5.1tons

Control : PLC computer with different language

Speed : 2-5m/min

Material : GI,PPGI.AL

Contact Now

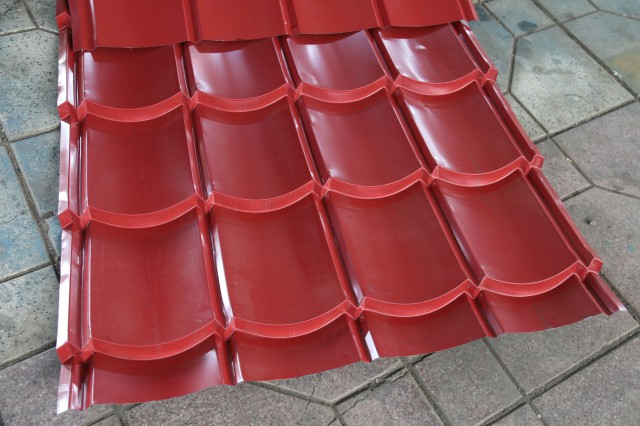

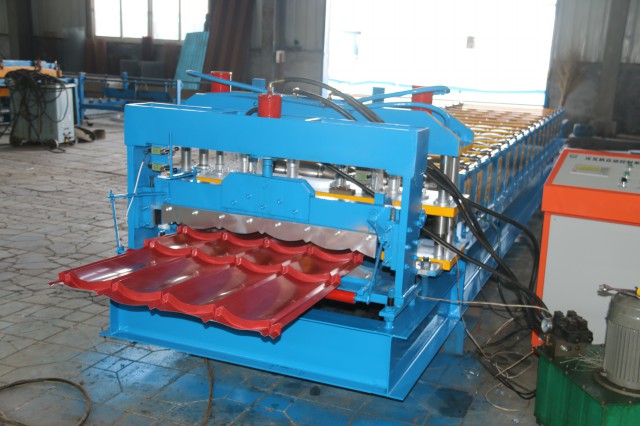

Steel tile 750 glazed profile sheet roll making machine for Indonesia


Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.

1. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:914mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa

2. Machine details

Brand: Feixiang
Model number: FX750
Voltage requirement: 380v60hz3p
Working speed:2-4m/min


3. Machine composition

No.

Name

Unit

Qty

1

Decoiler

set

1

2

Main Machine for roll forming

set

1

3

Control System(PLC)

set

1

4

Pressing System

set

1

5

Cutting System

set

1

6

Output Table

set

1


4. Main parameters



Model number

Steel tile 750 glazed profile sheet roll making machine for Indonesia

Rolled material

0.3-0.8mm thickness, aluminum sheet, galvanized sheet,
 colored steel sheet and various steel plates

Effective width

750mm

Feeding width

914mm

Forming steps

14 stations

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

80mm

Main motor power

5.5 kw

Pump power

3 kw

Sprocket chain

1 inch

Drive type

by chain

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting,
 to ensure the length accuracy
(±1mm, far better than industrial standard ±3mm).

component

set of manual decoiler,1 set of main roll forming machine,
1 set of computer control cabinet,1 set of hydraulic System,
1 set of cutting mechanism,1 set of counter,1 set of output table

Payment terms

cash,T/T,L/C.

Delivery time

30 working days


Steel Tile 750 Glazed Steel Profile Roll Forming Machine PLC Control For Construction
 Steel Tile 750 Glazed Steel Profile Roll Forming Machine PLC Control For Construction
