Reliable Downspout Roll Forming Machine , Galvanized Steel Pipe Making Machine

Name: Reliable Downspout Roll Forming Machine Galvanized Steel Pipe Making Machine
Brand: Feixiang
Price: 1 USD

Buy cheap Reliable Downspout Roll Forming Machine , Galvanized Steel Pipe Making Machine product

Brand Name : Feixiang

Model Number : FX120

Certification : CE BV ISO

Place of Origin : China

MOQ : 1set

Price : Please check with the supplier

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 30 sets per week

Delivery Time : 15 days

Packaging Details : Nude packing,but we can also packing according the customer requirements

Machine name : Reliable Downspout Roll Forming Machine , Galvanized Steel Pipe Making Machine

size : 11800mm*1200mm*900mm

Weight : 7tons

Control : PLC computer with different language

Speed : 8-15m/min

Material : GI,PPGI.AL other

Contact Now

Reliable Downspout Roll Forming Machine , Galvanized Steel Pipe Making Machine

1. Main products

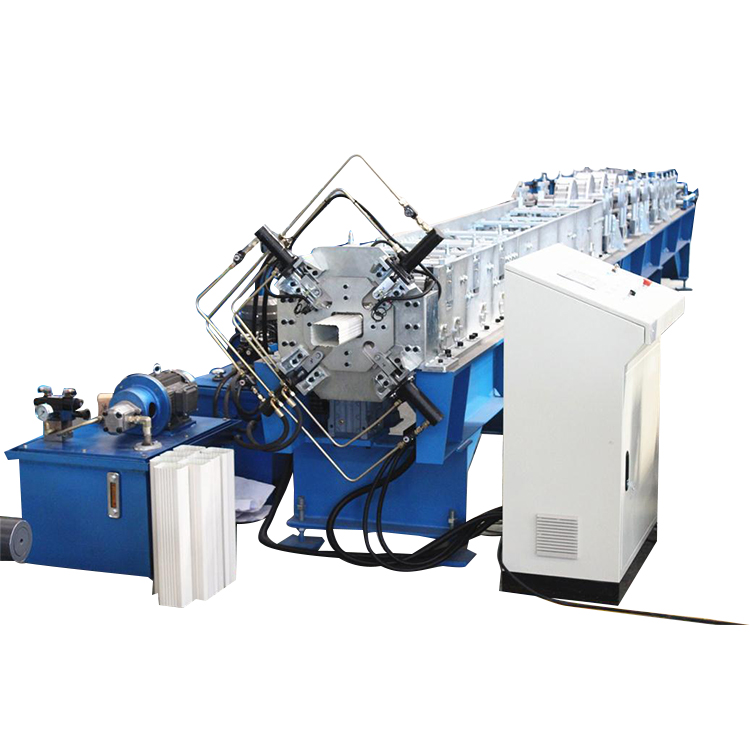

This kind of machine mainly consists of decoiler,
Roll forming system, cutting equipment, hydraulic system, PLC control system

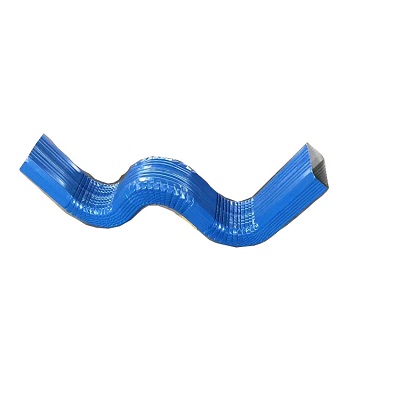

Run out table. And the curving pipe forming machine is the complementary
Equirement for this kind of machine, which can make curve for down pipe to meet
The requirement of practical engineering projects.

2. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:392mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa

3. Machine composition

No.	Name	Unit	Qty
1	Decoiler	set	1
2	Main Machine for roll forming	set	1
3	Control System(PLC)	set	1
4	Pressing System	set	1
5	Cutting System	set	1
6	Output Table	set	1

4. Main parameters

Model number	Reliable Downspout Roll Forming Machine , Galvanized Steel Pipe Making Machine
Rolled material	0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	120mm
Feeding width	392mm
Forming steps	24 stations
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	62mm
Main motor power	5.5 kw
Pump power	3 kw
Sprocket chain	1 inch
Drive type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component	1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table
Payment terms	cash,T/T,L/C.
Delivery time	30 working days
