Hydraulic Metal Glazed Tile Roll Forming Machine With 2 - 5m/Min Speed

Name: Hydraulic Metal Glazed Tile Roll Forming Machine With 2 5mMin Speed
Brand: Feixiang
Price: 1 USD

Buy cheap Hydraulic Metal Glazed Tile Roll Forming Machine With 2 - 5m/Min Speed product

Brand Name : Feixiang

Model Number : FX1005

Certification : CE BV ISO

Place of Origin : China

MOQ : 1set

Price : Please check with the supplier

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 30 sets per week

Delivery Time : 15 days

Packaging Details : Nude packing,but we can also packing according the customer requirements

Machine name : Hydraulic Metal Glazed Tile Roll Forming Machine With 2 - 5m/Min Speed

size : 8500*1350*1250mm

Weight : 6.2tons

Control : PLC computer with different language

Speed : 2-5m/min

Material : GI,PPGI.AL

Contact Now

Hydraulic Metal Glazed Tile Roll Forming Machine With 2 - 5m/Min Speed

The equipment adopts the high level automatic control software, the realization of information management system of production in tile press equipment to produce color plate straightening process, the profile will be from the top, down, left, right, which requires straightening

1. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:1220mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa

2. Machine details

Brand: Feixiang
Model number: FX1005
Voltage requirement: 380v60hz3p
Working speed:2-4m/min

3. Machine composition

No.	Name	Unit	Qty
1	Decoiler	set	1
2	Main Machine for roll forming	set	1
3	Control System(PLC)	set	1
4	Pressing System	set	1
5	Cutting System	set	1
6	Output Table	set	1

4. Main parameters

Model number	Hydraulic Metal Glazed Tile Roll Forming Machine With 2 - 5m/Min Speed
Rolled material	0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	1005mm
Feeding width	1220mm
Forming steps	18 stations
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	80mm
Main motor power	7.5 kw
Pump power	4 kw
Sprocket chain	1 inch
Drive type	by Gears
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component	1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet, 1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table
Payment terms	cash,T/T,L/C.
Delivery time	30 working days

Hydraulic Metal Glazed Tile Roll Forming Machine With 2 - 5m/Min Speed

Product Tags:

step tile roll forming machine

ridge cap roll forming machine

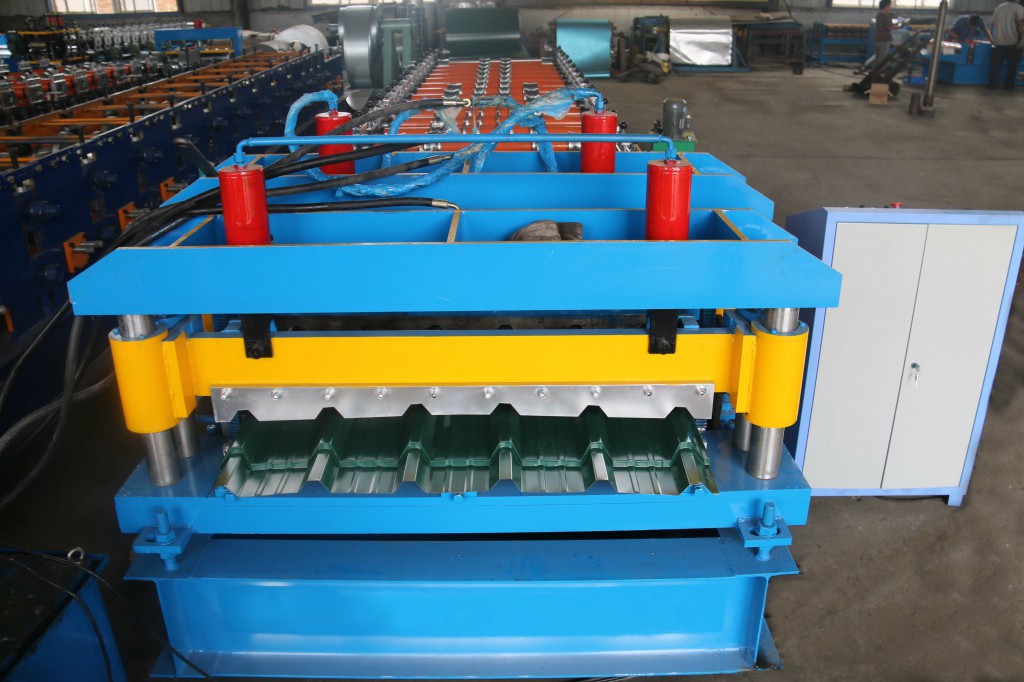

Hydraulic Metal Glazed Tile Roll Forming Machine With 2 - 5m/Min Speed Images
